角落轉(zhuǎn)角置物架 (FF18|FF21|FF24)
尺寸

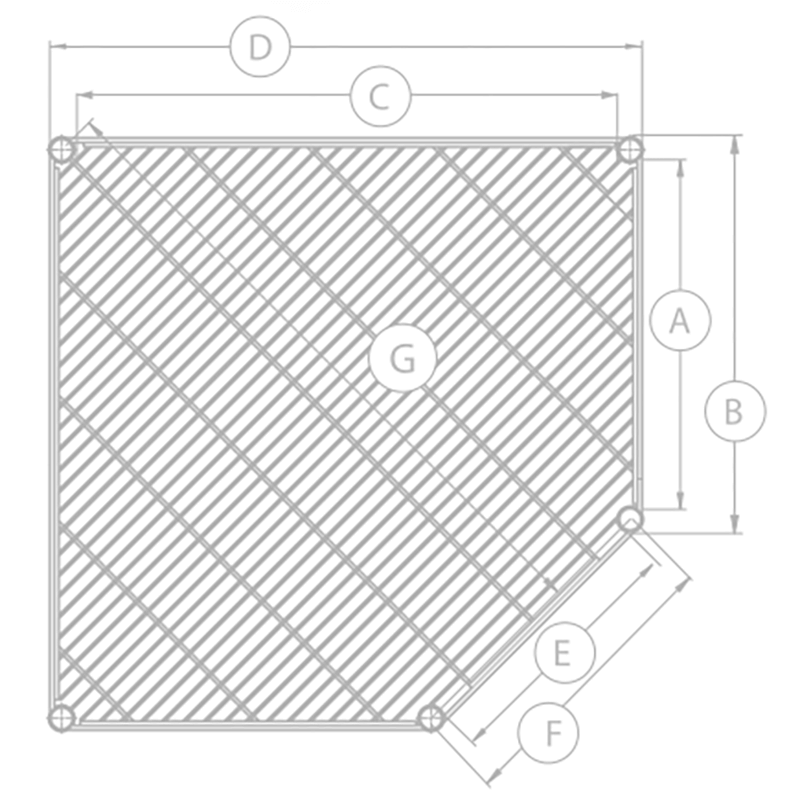

Determining the Corner Shelf Dimensions
| SHELF SIZE | 18″ | 21″ | 24″ |
| A |
15.53″ (394mm) |
18.63″ (394mm) |
21.64″ (549mm) |
| B |
18″ (457mm) |
21″ (533mm) |
24″ (609mm) |
| C |
26.14″ (663mm) |
29.29″ (743mm) |
32.24″ (818mm) |
| D |
28.55″ (725mm) |
31.55″ (801mm) |
34.55″ (877mm) |
| E |
13.85″ (352mm) |
13.85″ (352mm) |
13.85″ (352mm) |
| F |
16.26″ (413mm) |
16.26″ (413mm) |
16.26″ (413mm) |
| G |
31.09″ (789mm) |
35.33″ (897mm) |
39.58″ (1005mm) |
描述
Shelf / Post : steel
Surface options: Powder coat / Zinc plate
Easy to assemble, no tools required
Shelf 18”, 21”, and 24” options
Post height can be specially made as per request
650 lbs per shelf capacity
Maximize storage by utilizing the entire space, finish off corner runs in coolers
